Scratch for Business Process Automation

Short links

• Admin interface

Prerequisites

Note that https://scratch.divizend.ai is an instance only accessible to people with a @divizend.com email. You can only send auth emails with JWT tokens to email addresses which use one of the domains of the connected Google Workspace.

1. Look into .env.example and make all choices, add keys etc. as indicated there. See below for the instructions on how to set up Google Workspace.
2. Deploy this project (e.g. on Vercel with the "Deploy" button).
3. You're good to go! When you visit root of the new server, it should display exactly this readme.

Introduction

Scratch is the visual programming language with which I also learnt programming when I was around 10. When you go to https://scratch.divizend.ai/admin (or click on "Admin interface"), first send an access token to your email. It'll look like this:

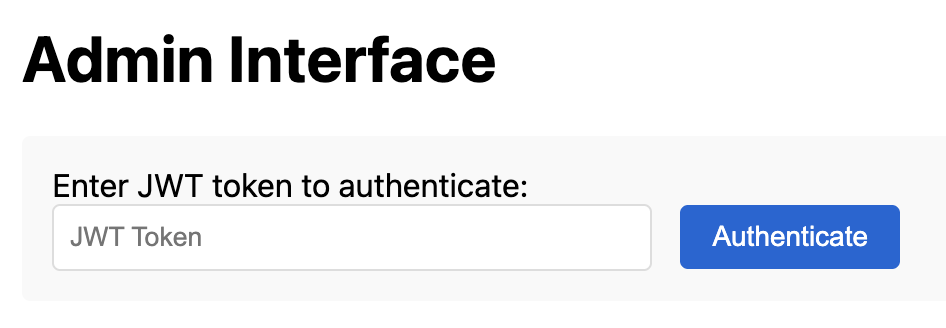

Then copy the string into the first field and authenticate:

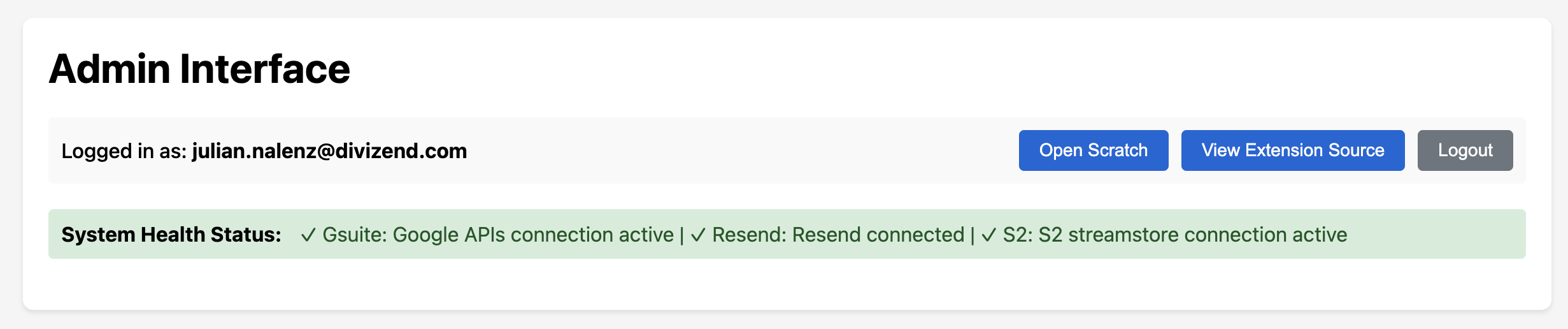

The admin interface should then look like this:

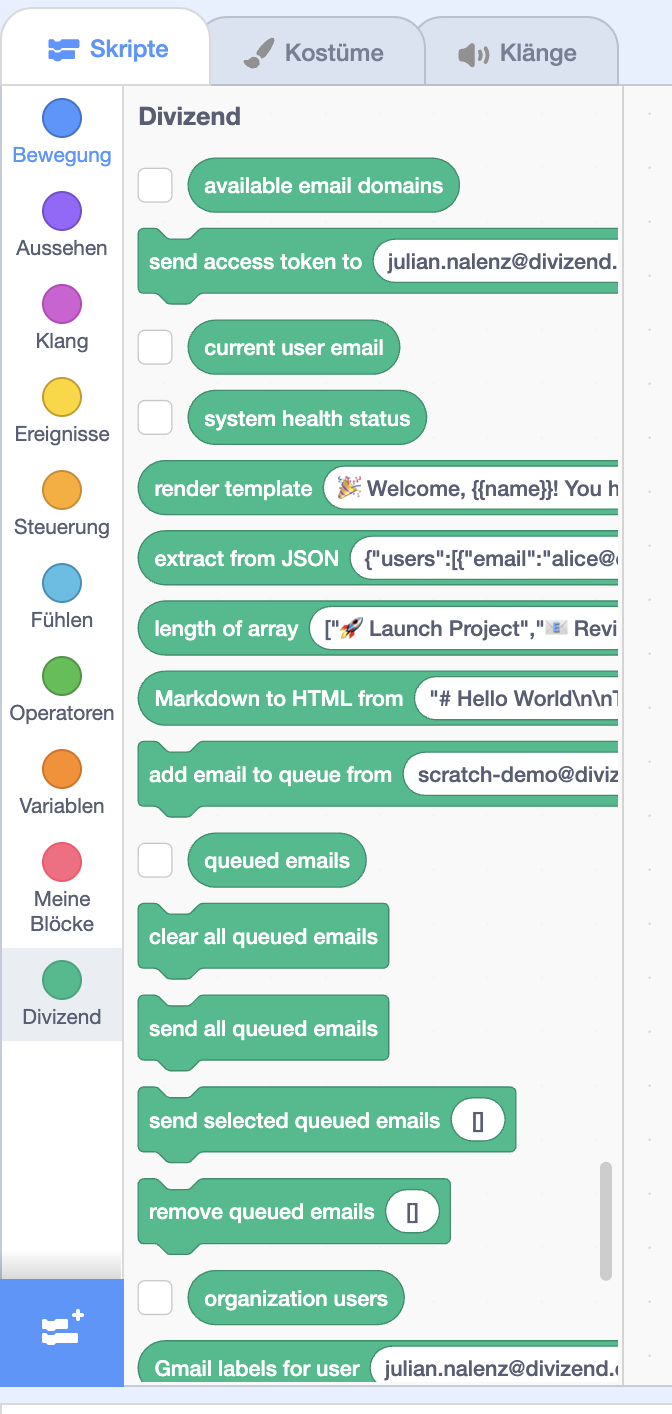

From here you can click on "Open Scratch", which will open a new tab. In there, on the bottom left, you should find a new "Divizend" tab (resp. a name based on the "ORG_NAME" environment variable):

Of course the actual point of this all is not Scratch itself, but to harmonize the systems we're interacting with through their APIs. Therefore the background of the Scratch layer on the surface is this repo (every block is actually just an API call). We want to make the APIs of the systems that constitute any organization feel as simple as possible, in a language "as simple as child's play", i.e. Scratch blocks. My next experiment will be to transfer all business logic into communication on streams, to embrace the event-driven paradigm more and increase reliability and efficiency of the system, so let me know in case you'd like to participate in the more technical details here.

This means that the goal is a conscious simplification, always with an API-first focus on the inside. Scratch should always be a "playground" for all your automation needs, but any blocks can be added in "regular" code quickly, and therefore be rolled out to everyone. Adding blocks simply happens here in the GitHub repo, and should, over time, become a frequent process until all of the world's operations are cleanly covered. So in case you see yourself frequently reuse functionality, please let me know.

Therefore, please save your projects and reload the Scratch editor page from time to time, to always be up to date with the newest features. The URL passed to the Scratch editor UI from your instance stays the same across any updates.

Local setup

1. Install bun.
2. cp .env.example .env
3. Update the different secrets in your .env. Follow the instructions below to set up the integration with Google Workspace.
4. Run bun install
5. Run bun run dev
6. Visit http://localhost:3000 and click on "Admin interface", send a token to your email address and enter it.
7. Click on "Open Scratch" to launch Scratch with an extension which contains the configured endpoints (see src/server/endpoints.ts).
8. Choose the "queue email" block from the e.g. "Divizend" section (named based on your ORG_NAME environment variable), try it and see how the blocks interact. Note that you can also click on any block to execute it.

Setting up GSuite

Making the admin user an organization admin

1. Go to https://console.cloud.google.com/iam-admin/iam
2. Make sure that not a project is selected, but instead the organization (i.e. the heading of the page should be something like Permissions for organization "divizend.com" and the URL should contain something like &organizationId=475226626272)
3. Click on "Grant access"
4. In the "New principals" field, enter the email address of the organization's admin.
5. Under "Select a role", choose Organization Policy Administrator.
6. Click "Save".
7. Wait a minute or so.

Allow creating service account keys

1. Go to https://console.cloud.google.com/iam-admin/orgpolicies/list and select your API project.
2. Filter by iam.disableServiceAccountKeyCreation.
3. If it's currently enforced and not overridden: At the end of its row, click on the three dots > Edit policy > Overwrite policy of parent resource > Add rule > Keep "Enforcement" as off > Done > Apply policy.
4. If it's currently enforced and overridden: Remove the override.
5. Wait a minute or so.

Create service account

1. Go to https://console.cloud.google.com/iam-admin/serviceaccounts and select your API project.
2. Click on "Create service account" on the top.
3. Call it "ai-executive", then click "Create and continue" and ignore step 2 and 3.
4. In its row, click on the three dots > Manage keys > Add key > Create new key > JSON > Create.
5. It'll download a JSON file.
6. Add a row like this to .env (email comes from the key client_email and private key from private_key in the JSON, then also add the email address of the workspace's admin user):

GCP_CLIENT_EMAIL_DIVIZEND=ai-commander@api-project-123456789.iam.gserviceaccount.com
GCP_PRIVATE_KEY_DIVIZEND="-----BEGIN PRIVATE KEY-----\nMIIEvQI...uHwU+Ag==\n-----END PRIVATE KEY-----\n"
GCP_ADMIN_USER_DIVIZEND=your.name@divizend.com

Enable API scopes through domain-wide delegation

1. In the service account view (e.g. https://console.cloud.google.com/iam-admin/serviceaccounts/details/102840656400393431115?authuser=0&project=fresh-myth-440600-h9&supportedpurview=project), copy the client ID (e.g. 102840656400393431115)
2. Go to https://admin.google.com/ac/owl/domainwidedelegation
3. Click on "Add new", enter the client ID and these OAuth scopes listed from line 117 in src/gsuite/core/GSuite.ts.
4. Click "Authorize"

Enabling SDKs

1. Enable the Admin SDK API: https://console.cloud.google.com/apis/library/admin.googleapis.com?project=api-project-319594010490
2. Enable the Gmail API: https://console.cloud.google.com/apis/library/gmail.googleapis.com?project=divizend
3. Enable the Google Docs API: https://console.developers.google.com/apis/api/docs.googleapis.com/overview?project=319594010490

Todo

• add an interpreter for a new BASIC-like programming language which can be called like any other endpoint and which does endpoint calls as well as jumps and handling variables (goal: have a set of atomic core functionality, i.e. the main blocks, and then expressing all more high-level functionality in terms of those)
